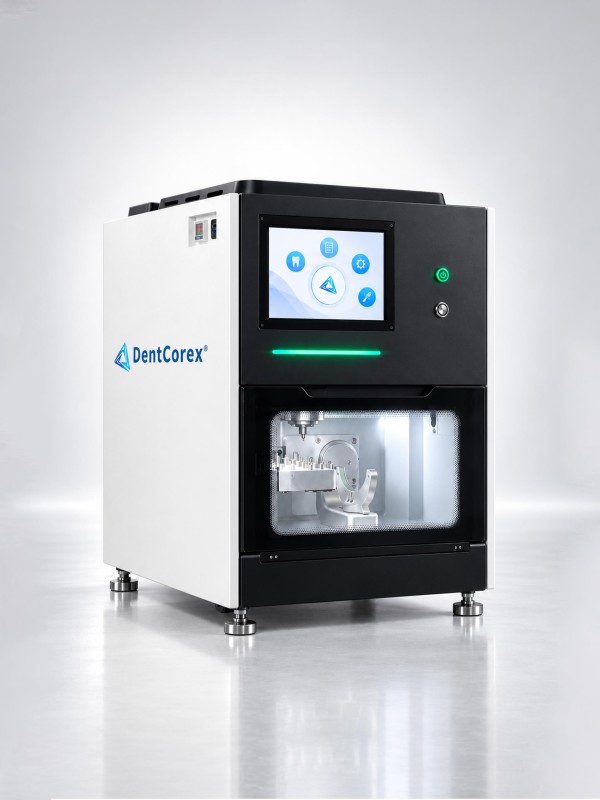

DentCorex Core 5X — 5-Axis Dry Dental Milling Machine
Precision Five-Axis Dry Milling

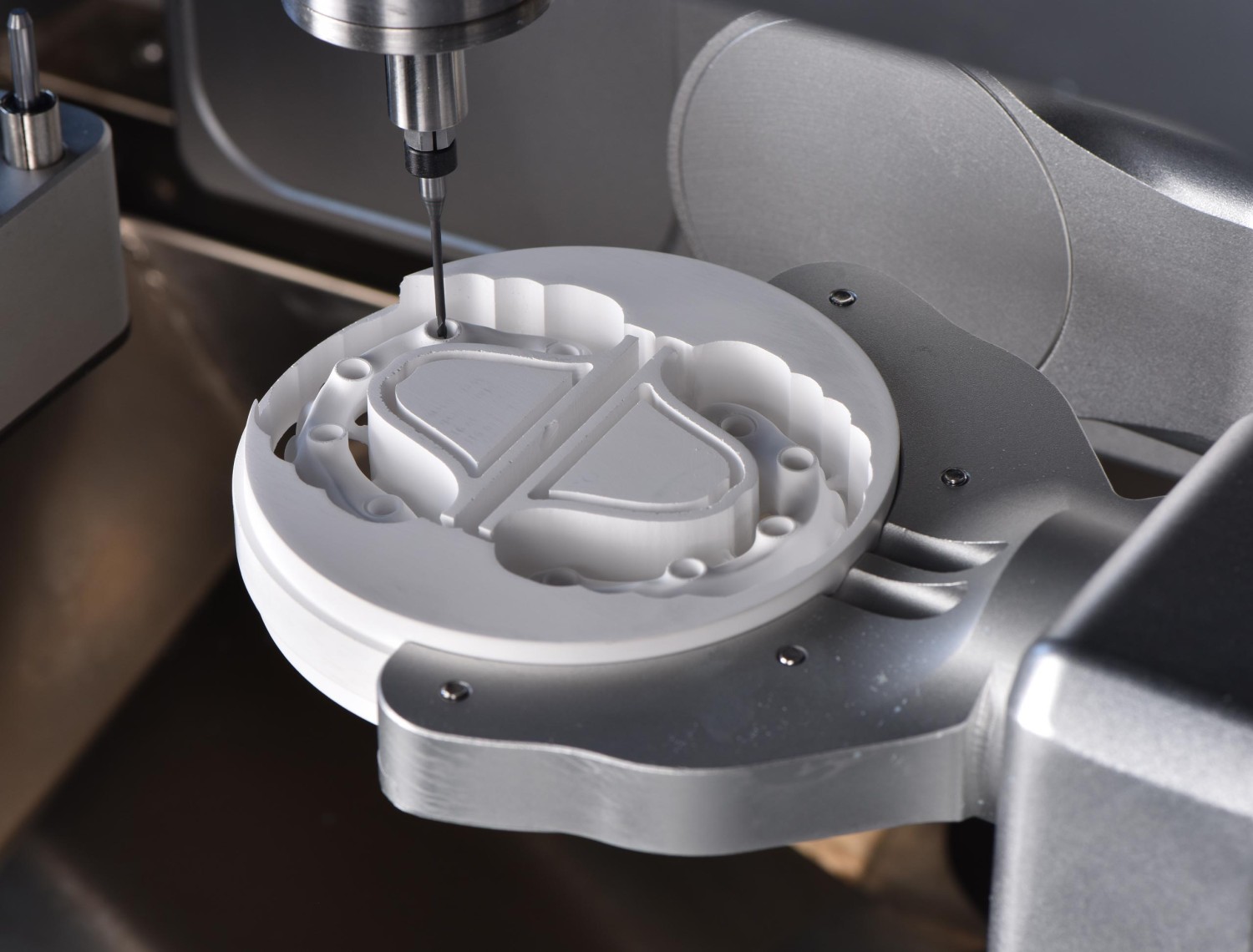

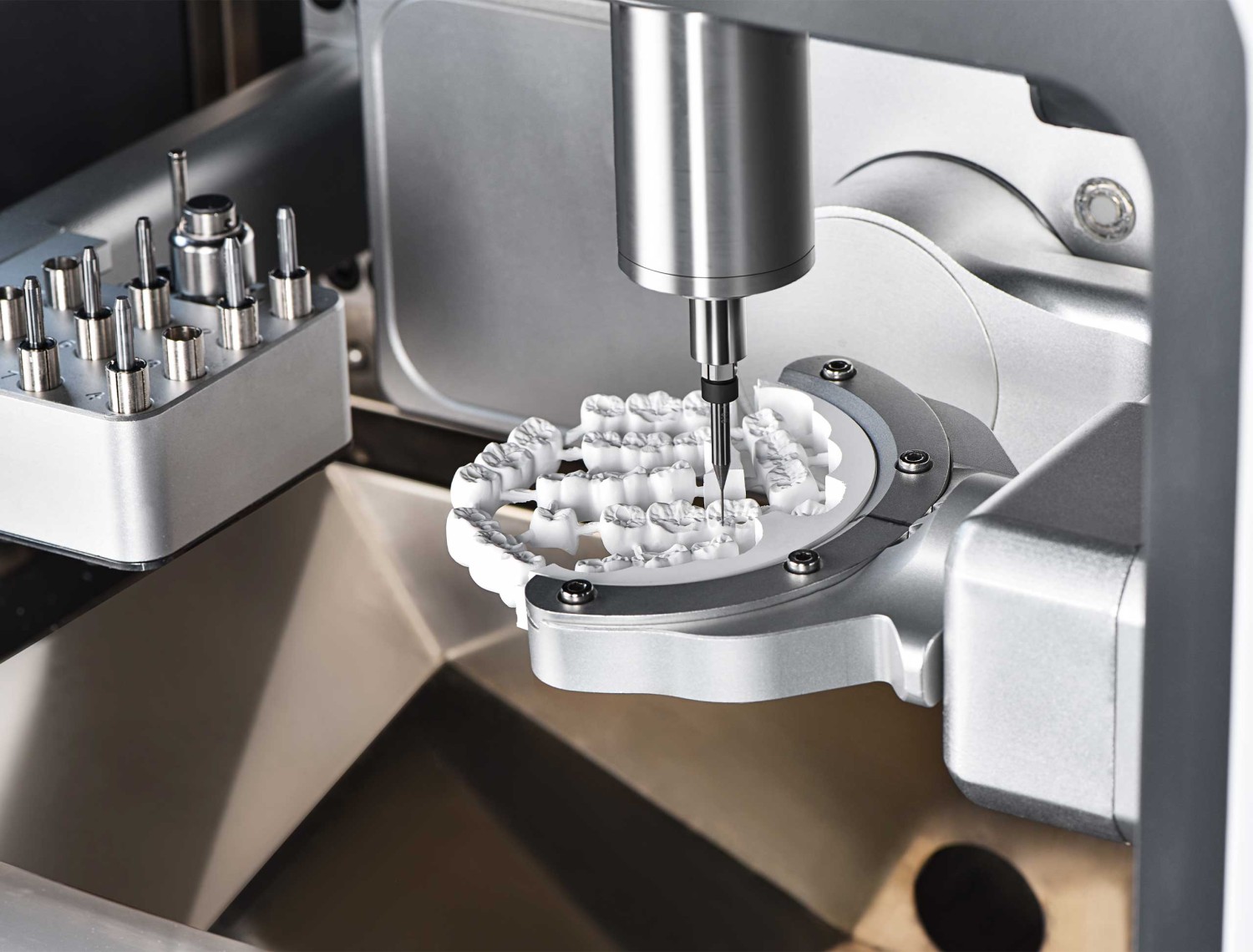

The DentCorex Core 5X is a professional five-axis dry milling machine engineered for accurate, repeatable and efficient dental production.
Its rigid one-piece cast-iron structure, full-servo motion control and automatic calibration system work together to provide stable machining accuracy of up to ±0.01 mm.

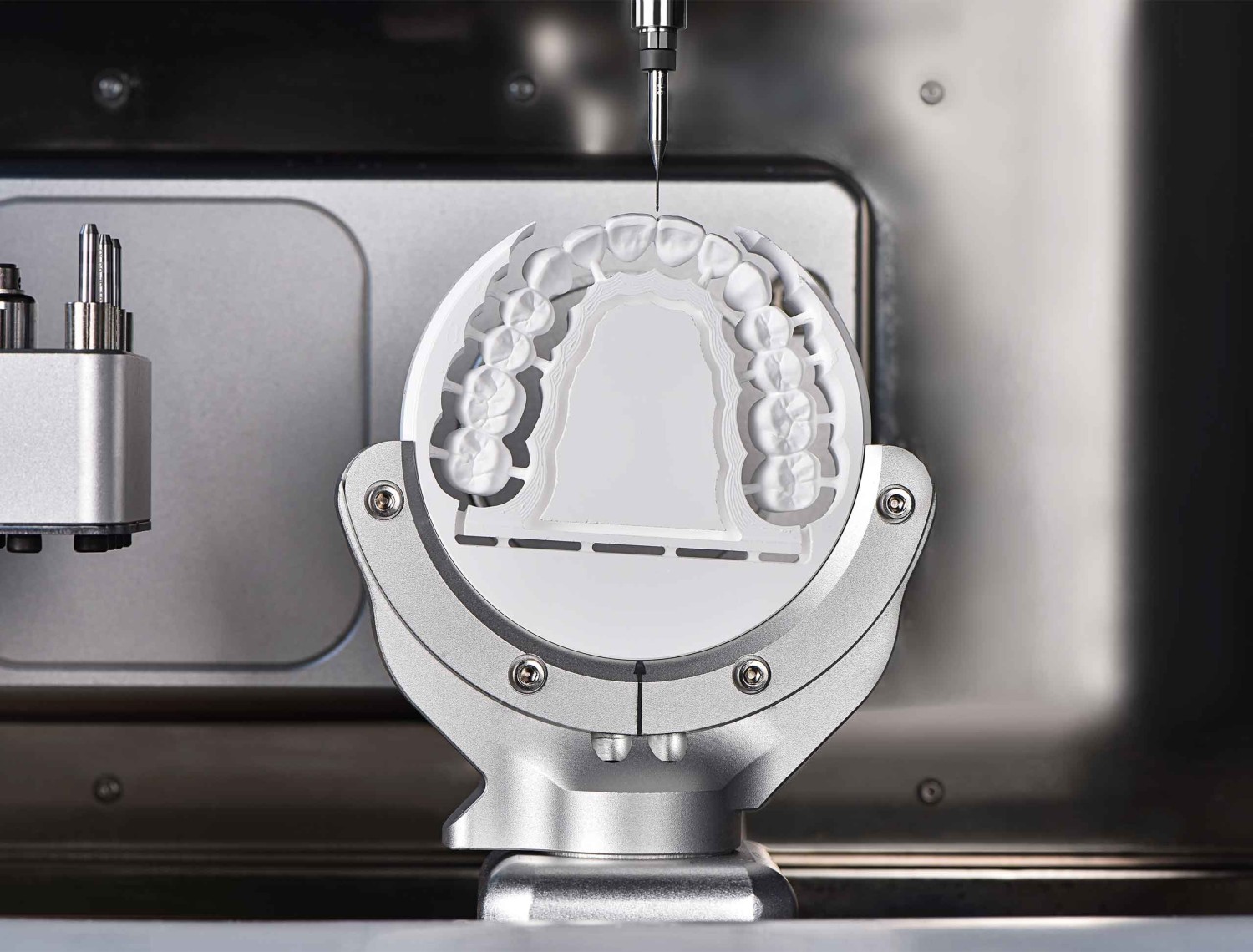

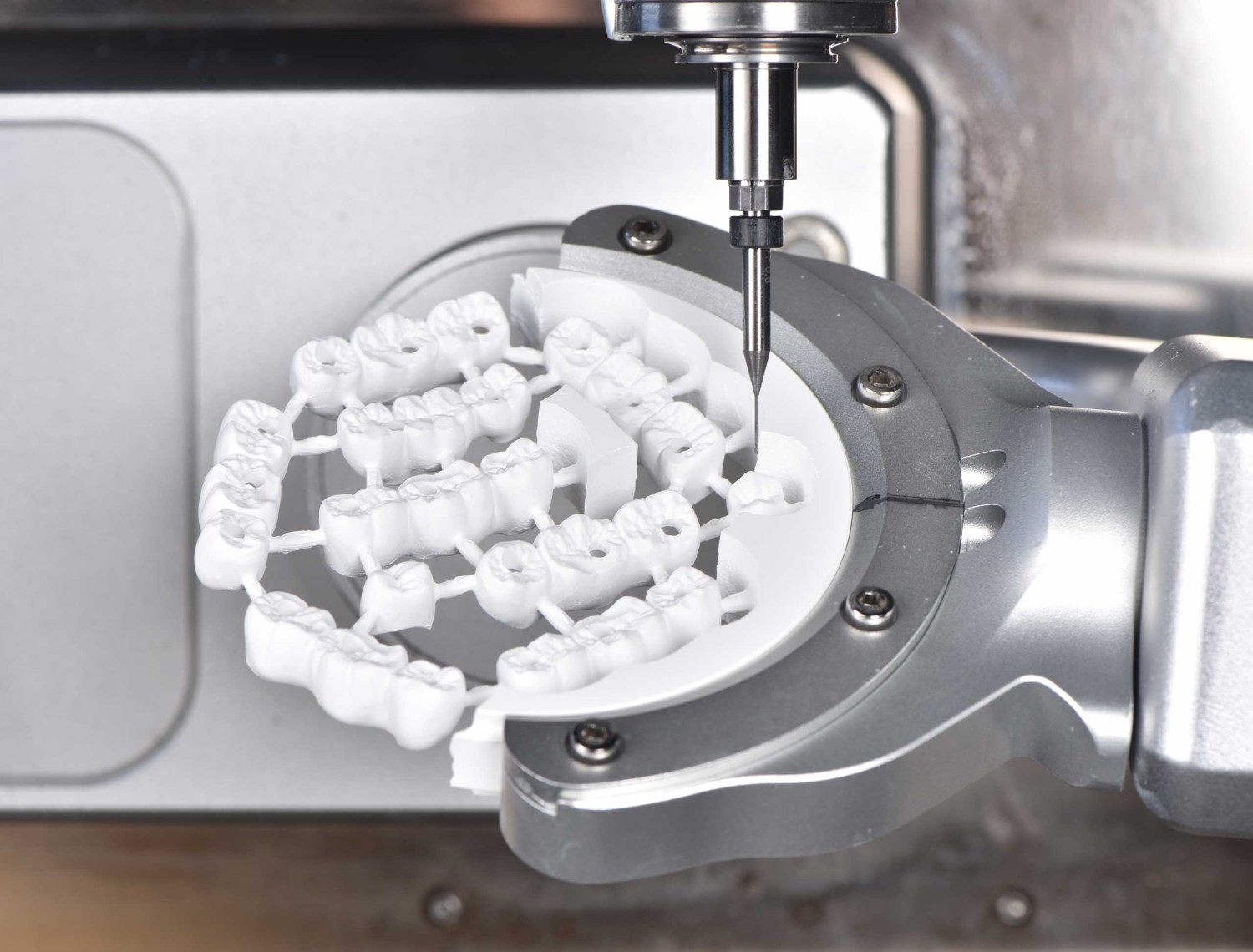

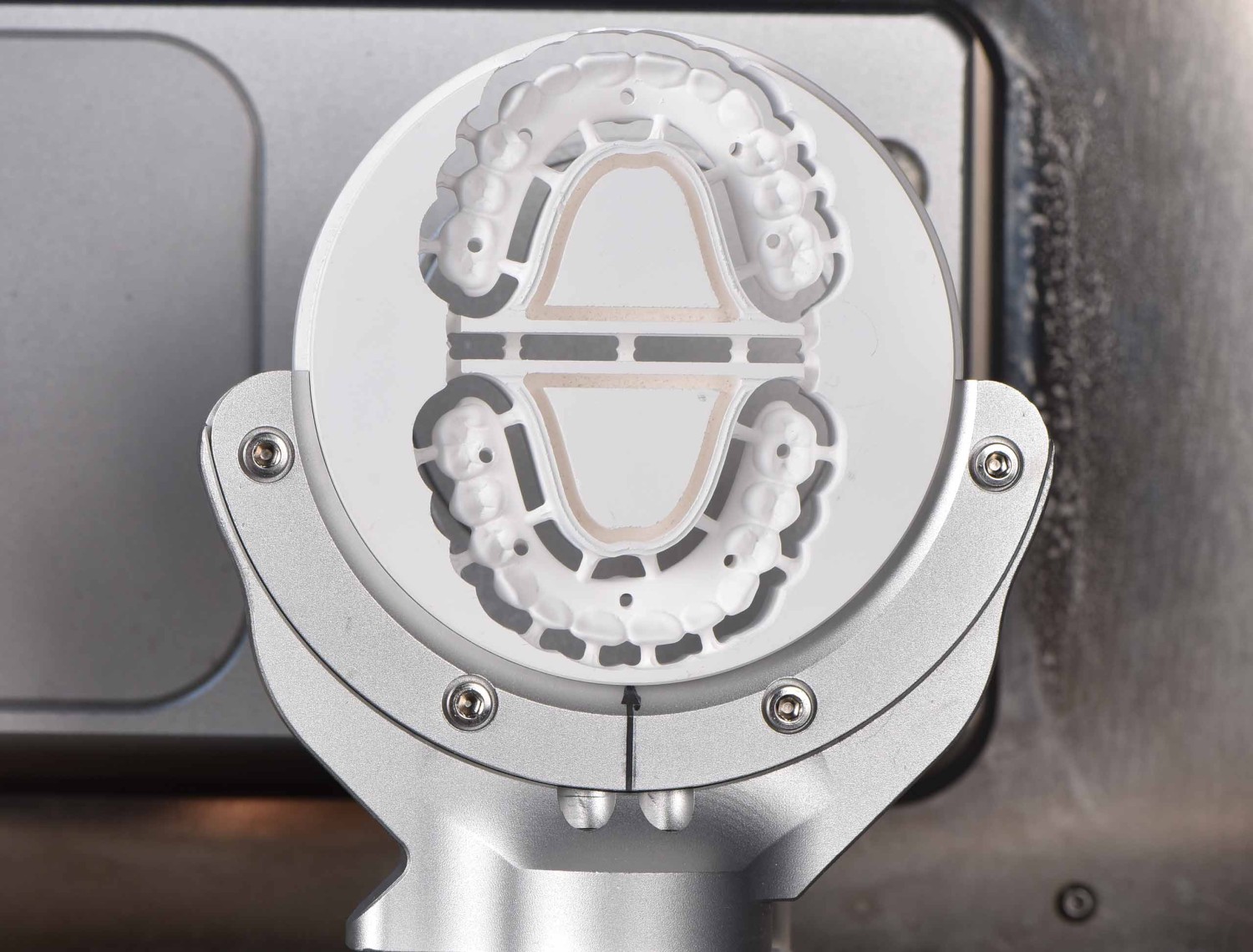

The open CAD/CAM architecture supports the production of crowns, bridges, veneers, inlays, onlays, frameworks, telescopic crowns and implant restorations using zirconia, PMMA, wax and compatible composite materials.
Key Advantages
- Five-axis dry milling
- Machining accuracy up to ±0.01 mm
- High-speed 60,000 RPM spindle
- Ten-position automatic tool magazine
- Full-servo motion control
- Automatic machine calibration
- Interruption recovery
- Automatic cleaning
- Dual-layer filtration
- Rigid cast-iron construction
- 10.4-inch touchscreen interface
- Open CAD/CAM workflow
Materials
- Zirconia
- PMMA
- Wax
- Compatible composite materials
Technical Specifications
| Specification | Value |
|---|---|
| Machining Method | Dry |
| Number of Axes | 5 |
| Machining Accuracy | ±0.01 mm |
| Spindle Speed | 0–60,000 RPM |
| Spindle Power | 1.2 kW |
| Spindle Cooling | Air-cooled |
| Tool Capacity | 10 tools |
| Tool Shank Diameter | 4 mm |
| Disc Format | Ø98 mm |
| Maximum Disc Thickness | 30 mm |
| X-Axis Travel | 230 mm |
| Y-Axis Travel | 120 mm |
| Z-Axis Travel | 100 mm |
| A-Axis Range | 0° to 360° |
| B-Axis Range | −91° to +30° |
| Machine Dimensions | 530 × 650 × 750 mm |
| Machine Weight | 110 kg |
| Total Power | 1.5 kW |
| Power Supply | 220–230 V AC |
| Frequency | 50/60 Hz |
| Required Air Pressure | 4.5–7.5 bar |
| User Interface | 10.4-inch touchscreen |
| Automatic Calibration | Supported |
| Interruption Recovery | Supported |
Professional Support
DentCorex provides installation guidance, operator training, CAM workflow setup, calibration assistance and ongoing technical support.
Core components are covered by a 28-month warranty, excluding damage caused by improper use.
Related products
Frequently Bought Together
No frequently bought products found!
Products from this Seller
View All

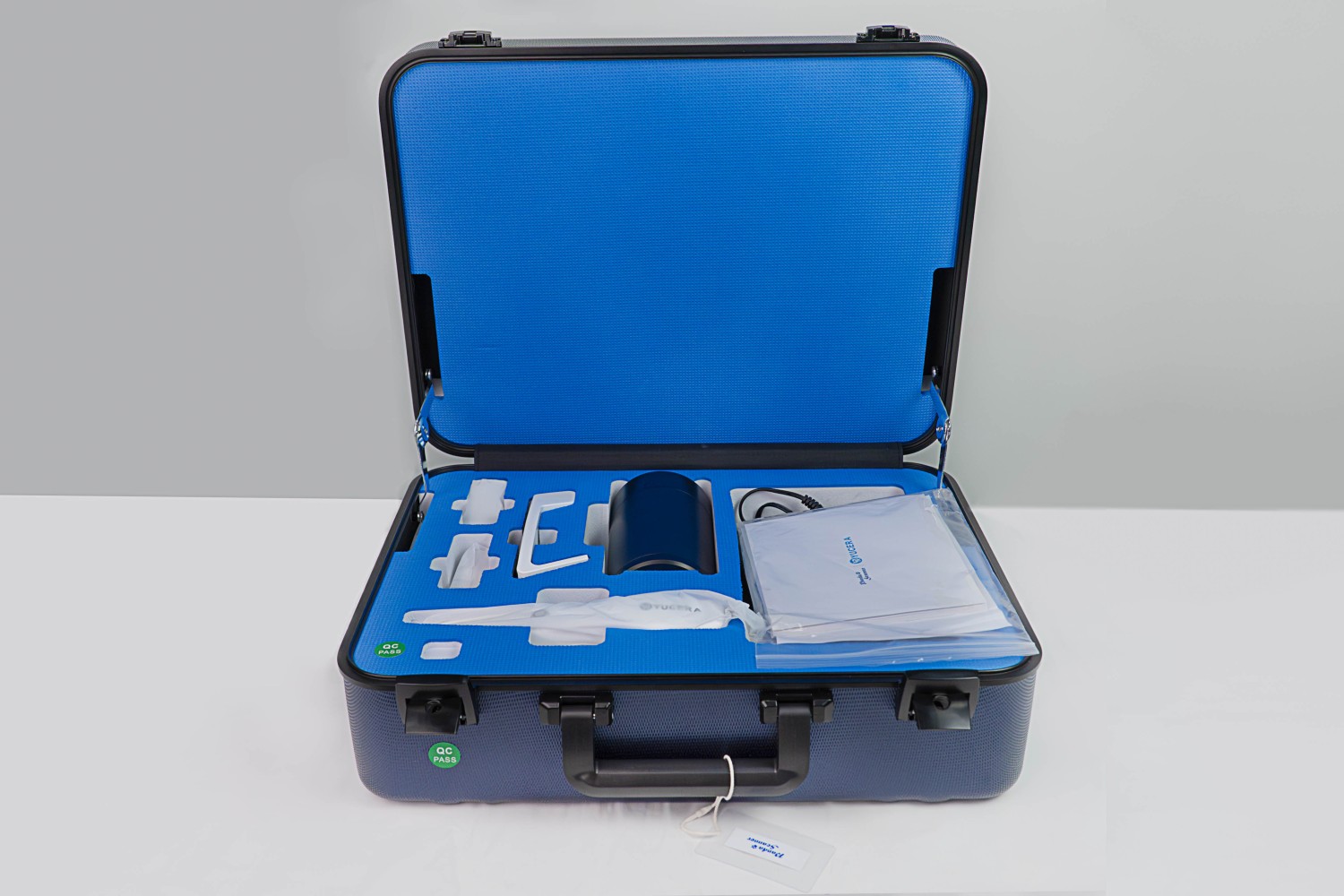

DentCorex S02 Intraoral Scanner

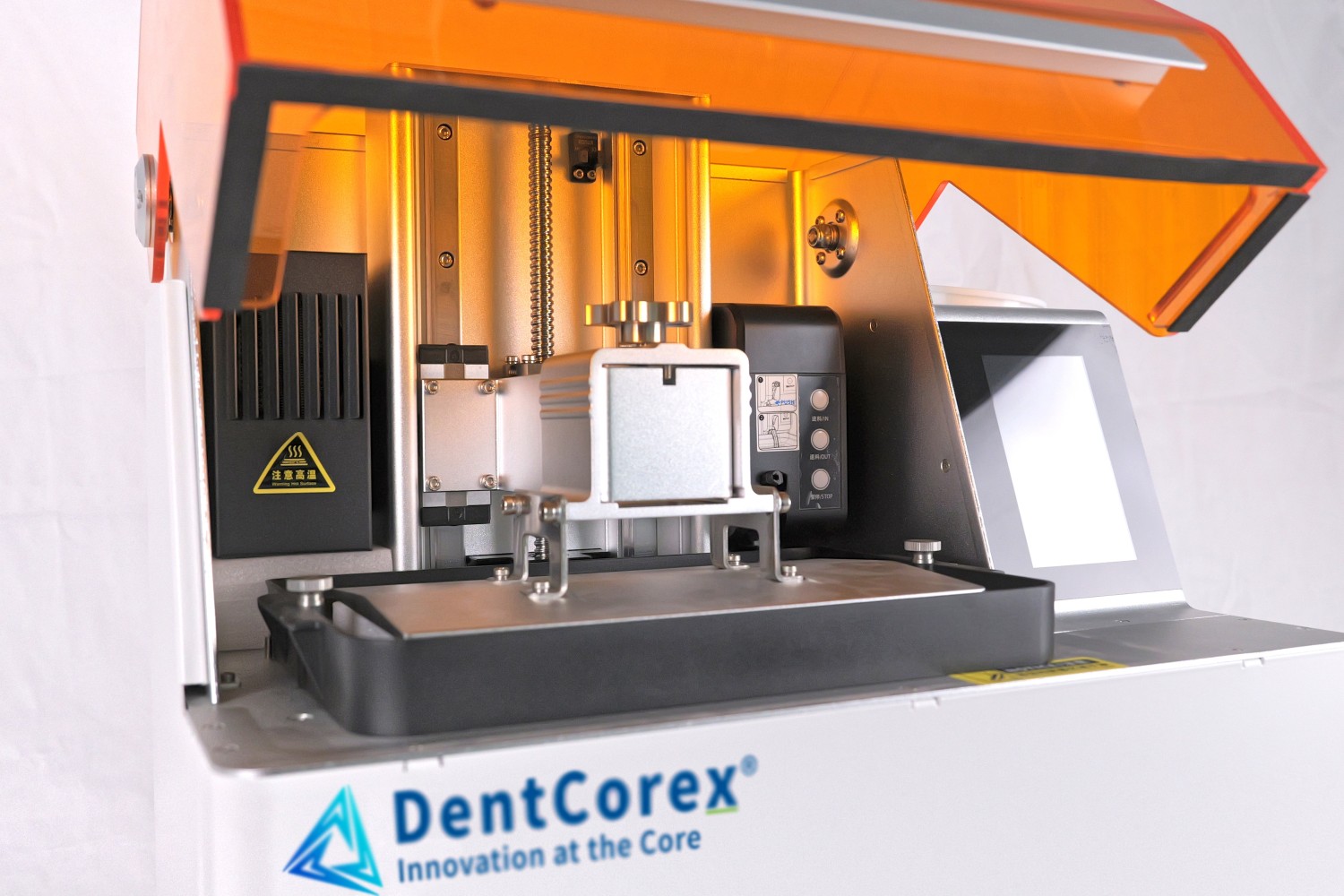

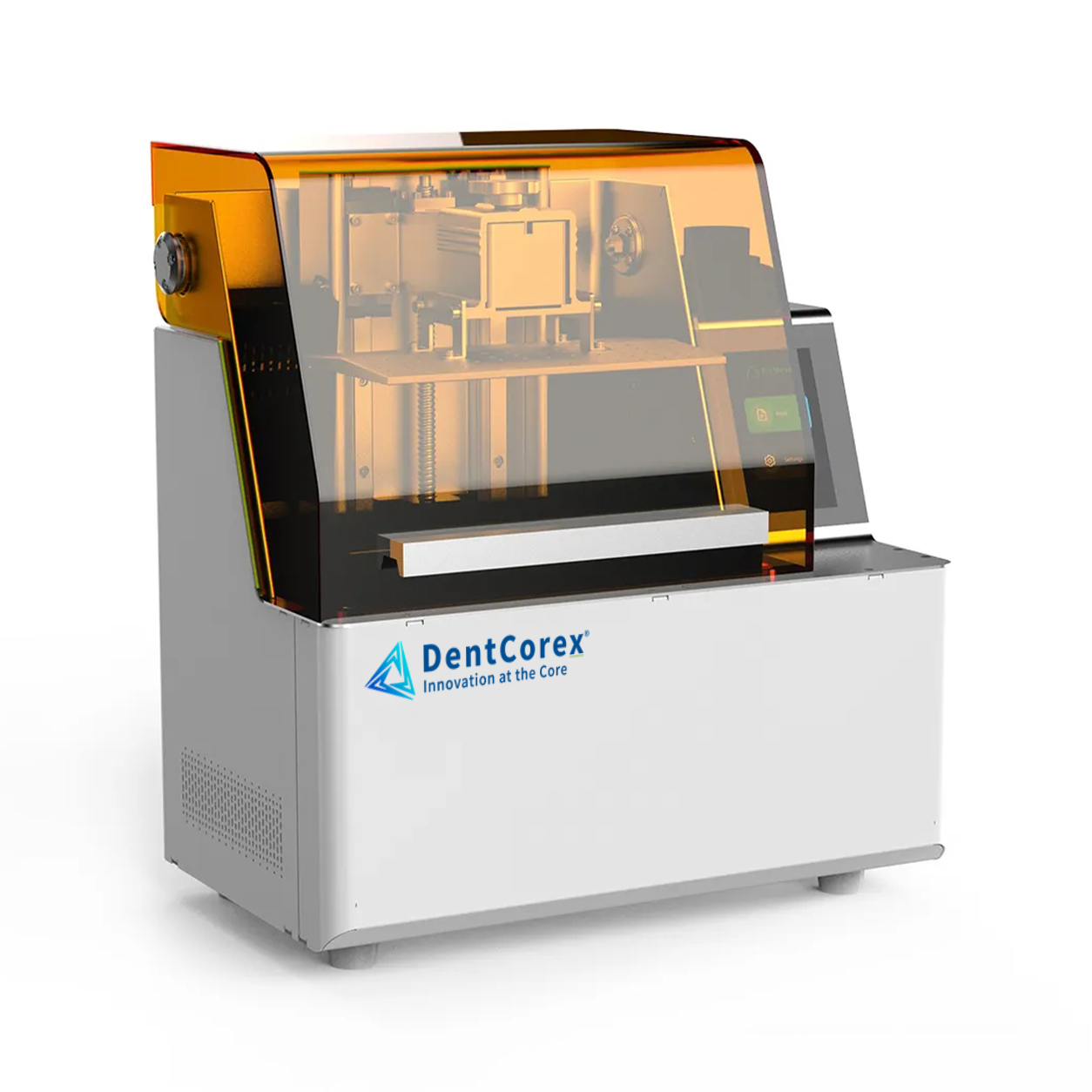

DentCorex DJ89 Plus 8K Dental 3D Printer
