DentCorex Titan 5X — 5-Axis Wet Dental Milling Machine
High-Performance Five-Axis Wet Milling
The DentCorex Titan 5X is a professional five-axis wet milling platform developed for demanding titanium, implant and restorative production workflows.
Its rigid integrated cast-iron structure, precision motion components and full-servo control system deliver stable machining accuracy of up to ±0.01 mm.
A 1.8 kW water-cooled spindle, 21-position automatic tool magazine, dual holder system and 25-liter liquid tank provide the capacity and flexibility required for titanium bars, custom abutments, premilled blanks, lithium disilicate restorations and other compatible dental applications.
Key Advantages

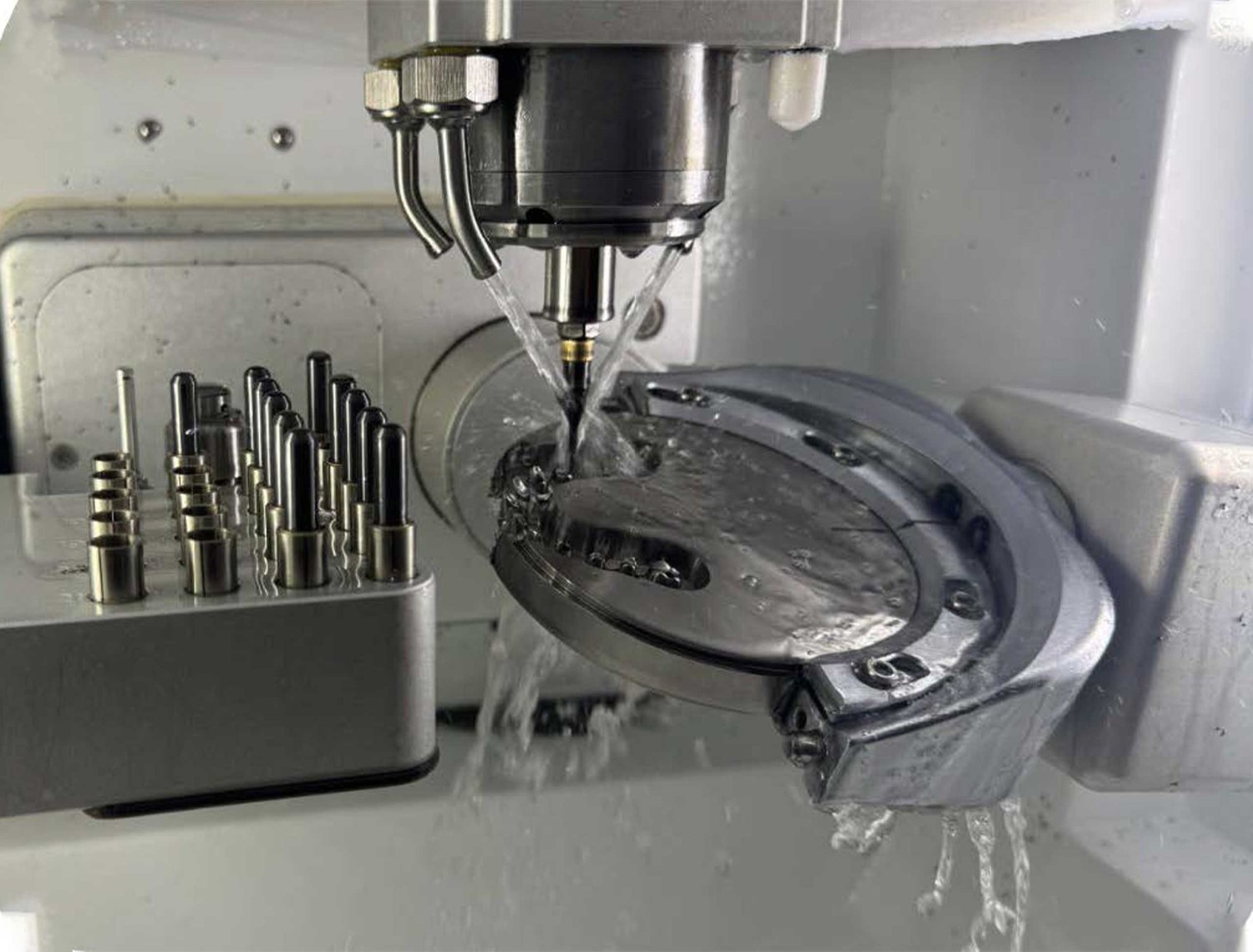

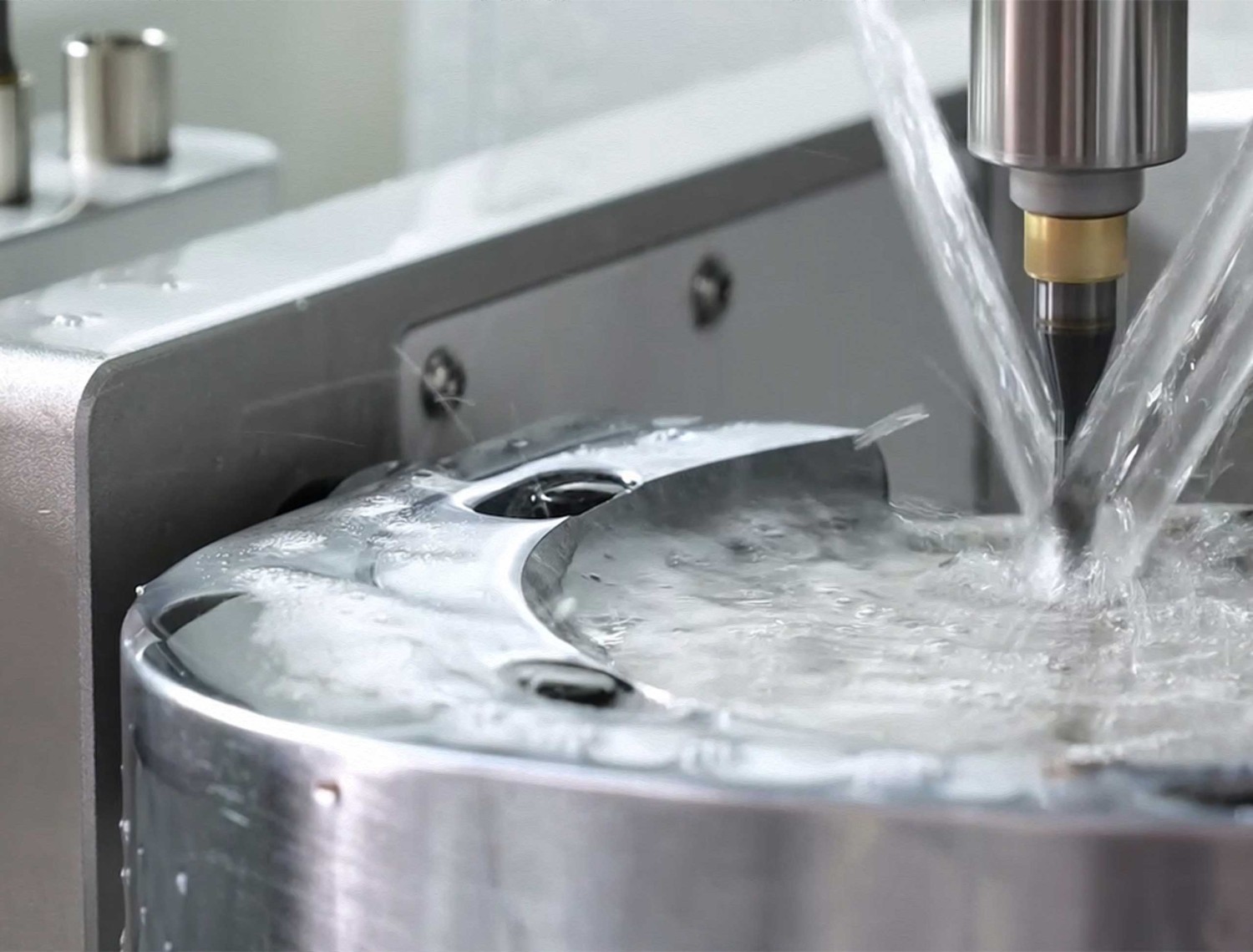

- Five-axis wet milling
- Machining accuracy up to ±0.01 mm

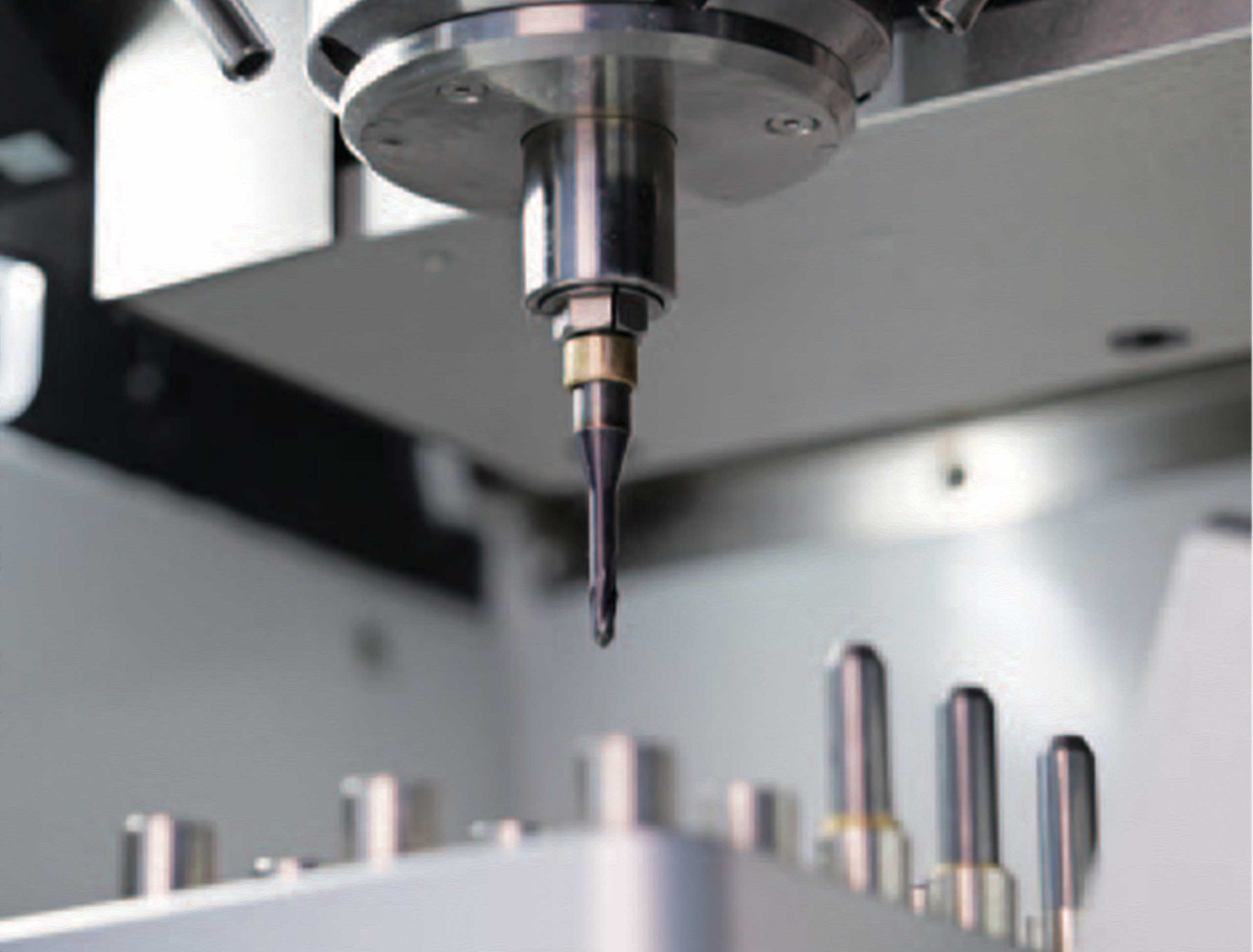

- 1.8 kW water-cooled spindle
- Spindle speed up to 60,000 RPM
- 21-position automatic tool magazine
- Full-servo motion control
- Automatic calibration
- Interruption recovery
- Automatic cleaning
- Dual-layer filtration
- 25-liter liquid system
- Two interchangeable holder systems
- Rigid integrated cast-iron structure
- 10.4-inch touchscreen
- Open CAD/CAM workflow
Machinable Materials

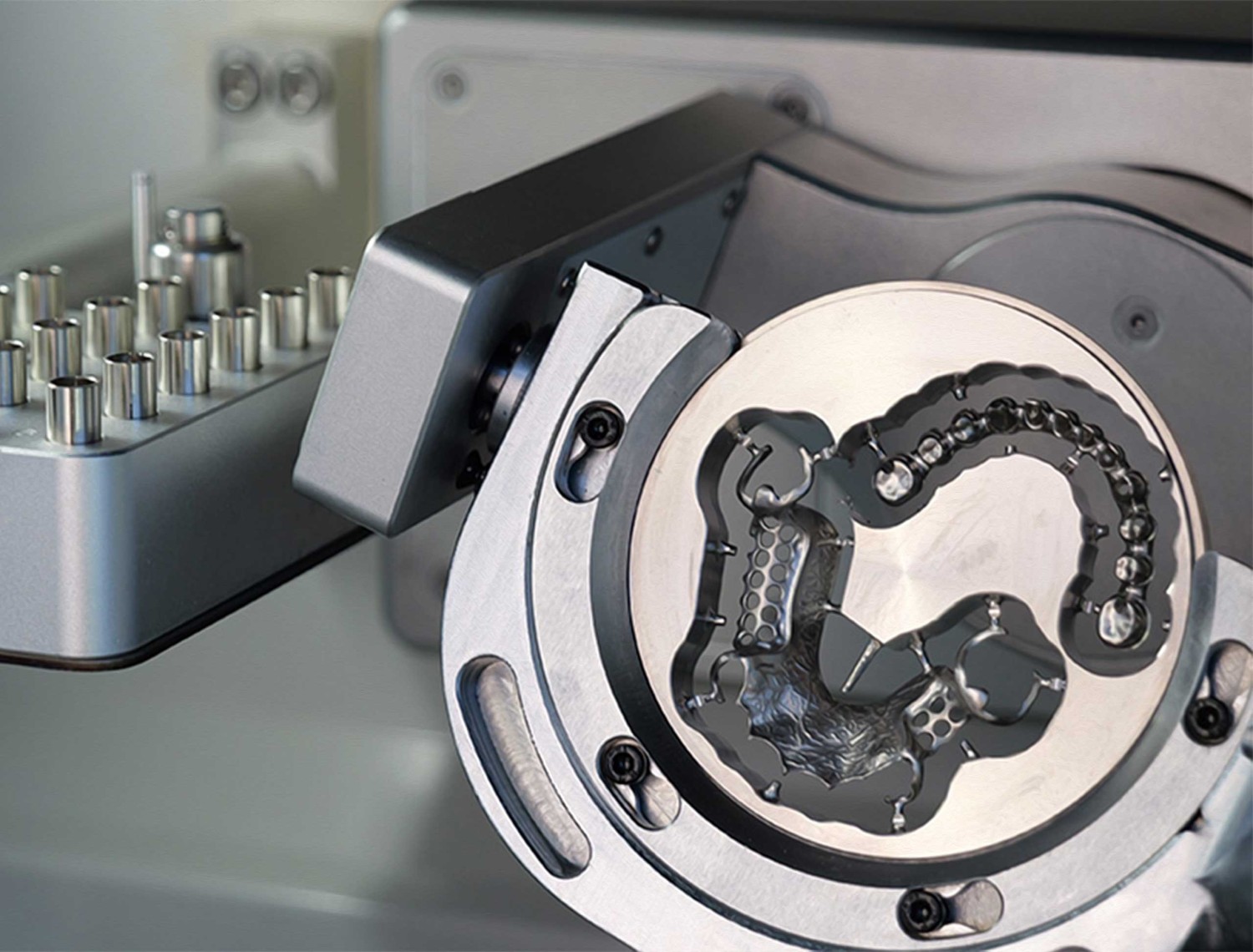

- Titanium
- Premilled blanks
- Lithium disilicate
- PMMA
- Compatible zirconia configurations
Dental Applications
- Titanium implant bars
- Custom abutments
- Implant restorations
- Maryland bridges
- Frameworks and clasps
- Crowns and inlays
- Ceramic veneers
- Maxillofacial applications
Holder Systems

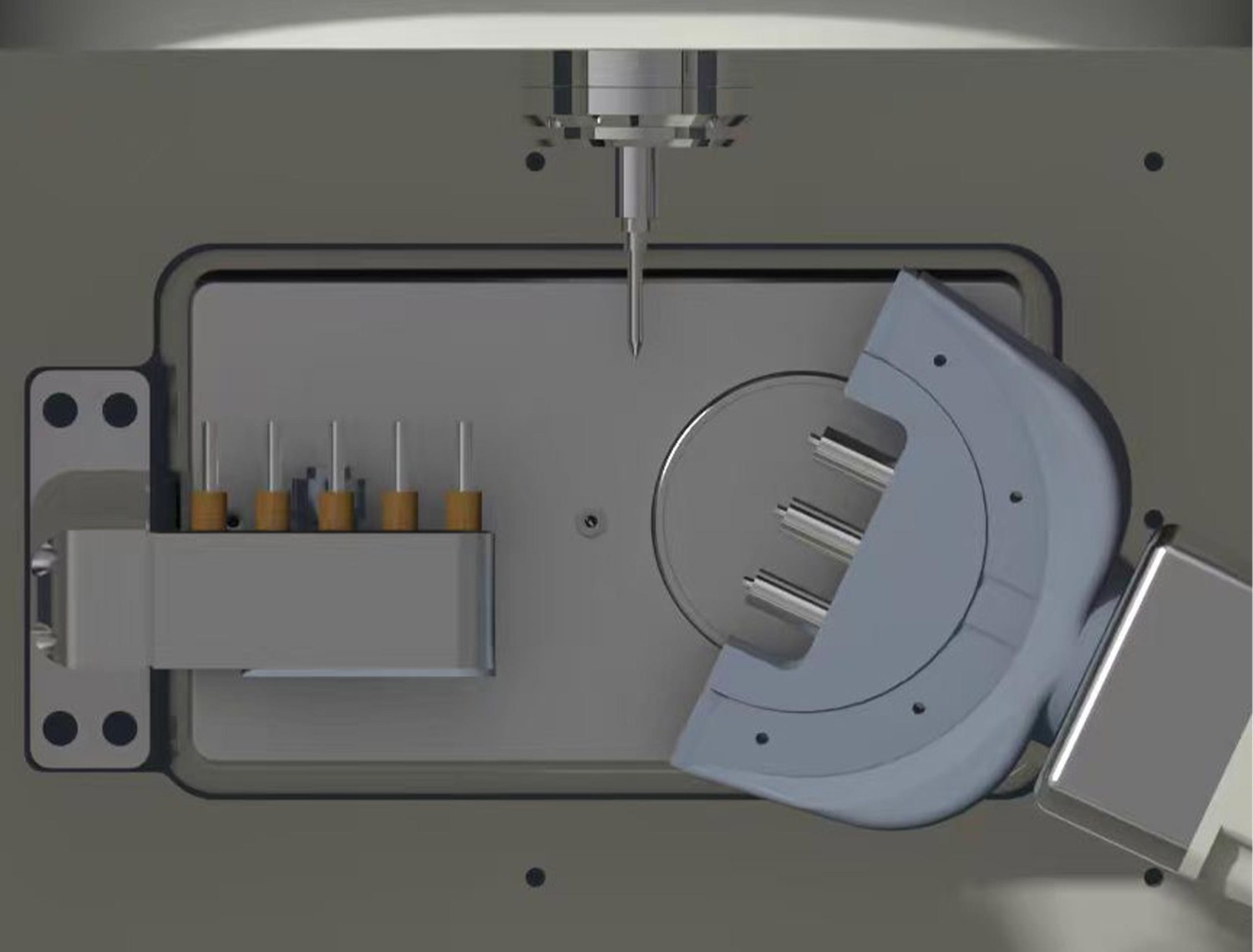

Standard C-Clamp
- Compatible with Ø98 mm dental discs
- Maximum material thickness: 35 mm
- Five-axis milling configuration
- B-axis movement: −95° to +30°

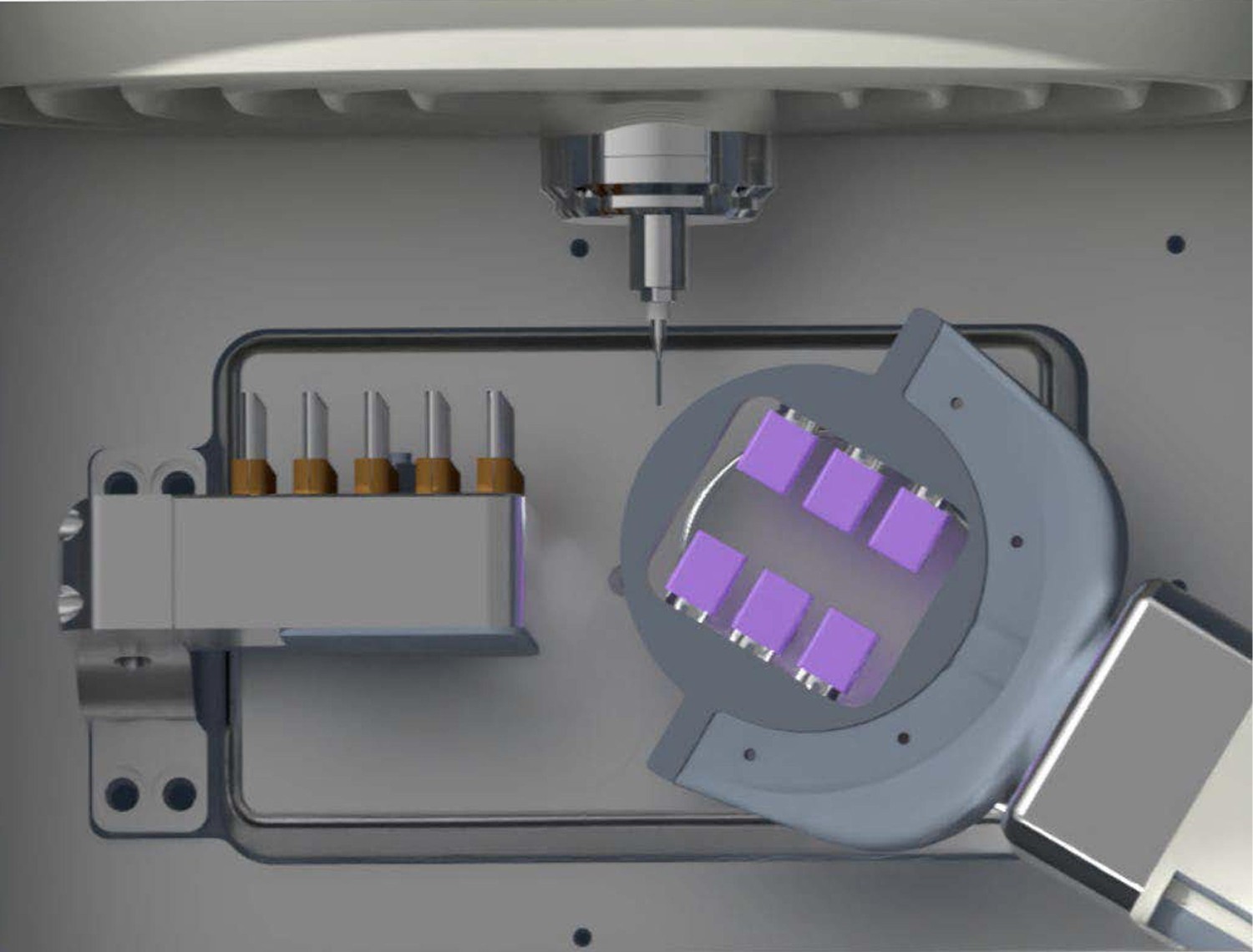

Block Holder
- Three lithium-disilicate block positions
- Two premilled-blank positions
- Five total positions
- Supported block sizes: I12, C14 and B40
Technical Specifications
| Specification | Value |
|---|---|
| Machining Method | Wet |
| Number of Axes | 5 |
| Machining Accuracy | ±0.01 mm |
| Spindle Speed | 0–60,000 RPM |
| Spindle Power | 1.8 kW |
| Spindle Cooling | Water-cooled |
| Tool Capacity | 21 tools |
| Tool Shank Diameter | 6 mm |
| Disc Format | Ø98 mm |
| Maximum Disc Thickness | 35 mm |
| Liquid Tank Capacity | 25 liters |
| X-Axis Travel | 230 mm |
| Y-Axis Travel | 120 mm |
| Z-Axis Travel | 100 mm |
| A-Axis Range | 0° to 360° |
| B-Axis Range | −95° to +30° |
| Machine Dimensions | 595 × 760 × 1,635 mm |
| Machine Weight | 280 kg |
| Total Power | 3.2 kW |
| Power Supply | 220–230 V AC |
| Frequency | 50/60 Hz |
| Required Air Pressure | 6.5–7.5 bar |
| User Interface | 10.4-inch touchscreen |
| Automatic Calibration | Supported |
| Interruption Recovery | Supported |
| Automatic Cleaning | Supported |
| Filtration System | Dual-layer |
Professional Support
DentCorex provides installation support, operator training, tooling guidance, CAM strategy optimization, calibration assistance and ongoing technical support.
Core components are covered by a 28-month warranty, excluding damage caused by improper use.
